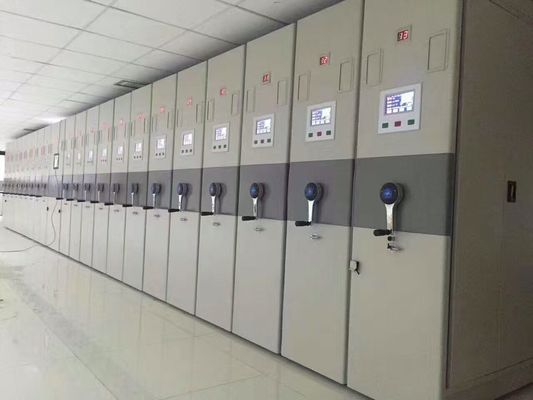

Electrical Powder Intelligent High Density Storage System , Mobile File Storage Systems

Large Image :  Electrical Powder Intelligent High Density Storage System , Mobile File Storage Systems

Product Details:

Place of Origin: CHINA
Brand Name: Simply
Certification: SGS
Model Number: SII-MBS007

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: brown carton
Delivery Time: 25days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detailed Product Description
Material: Steel Or Stainless Steel Size: Custom Sizes To Max Use The Space
Surface: Chrome-plated & Epoxy Powder Coating , Zinc Plate Warranty: 1--5 Years Depending On The Finish And Application.
Accessories: Ledge, Divider, Donut Bumper Features: Easy To Relocate

Electrical Powder Intelligent High Density Mobile Shelving Solutions



Features of the High Density Mobile Shelving



  1. The carriages can be designed to take shelving, racking, cabinets
  2. All size length, depth & heights can be customized
  3. Welded-steel carriage sections enhance the shelving alignment and reduce binding, racking and misalignment of carriage and shelving.
  4. All the rails made of 20*20mm solid steel & can be extended
  5. Maximum load carrying capacity of 1,500 kg per linear meter
  6. Bumpers mounted to protect material which may extend beyond the shelf face and provide positive stops without damage
  7. Each row have a label holder for identification
  8. each row is equipped with its own independent control system
  9. operating system is done by a touch control panel



Function of intelligent mobile shelving





1. encryption function

The rack will be operated only if inputting correct password



2. 3 operation ways

3 ways to operate: manual, motorize, computer control, all 3 ways can operate the shelf



3. Bar code collection & manage system

When organize/input all documents to be displayed at exactly position of the shelf, the bar code will be generated and printed automatically. Then paste the bar code to the file folders.

When search the files, put the keyword of the file names, and double click the name, the shelf will be automatic opened. Meanwhile the position will be shown on the touch screen of the displayed unit.

When return the files, scan the bar code with scanner, the PC will show which its name, double click the name the correct rack will be opened.



4. Infrared sensor safety device

This infrared device is door alarm sensing structure .No matter the compact rack is moving or has stopped already, once somebody is entering, or has dropped stuff, the compact rack will stop and forbidden to move. It has vertical and lateral radio protection device.



5. Voice alarm function

Such as When the compact rack is working, the power is open of closed, or the operator is operating ,the voice alarm system will work


6. humidity & temperature shown & alarm

Humidity and temperature Self-checking, will also be shown in the touch screen, the alarm will be set once the humidity and temperature is non standard



7. ventilation function

Press the button ventilation and the compact rack will be evenly displayed to ventilate



8. Illumination function

After the compact rack is open, the lamp will automatically turn on ;when it closed, the illumination lamp will automatically turned off.





The benefits you can get by using mobile aisle shelving systems



  • Double your storage capacity

Mobile shelving offers the highest possible density for storing files and other media. Simply mobile shelving systems maximize existing storage space by eliminating aisles and compacting several storage cabinets or shelving systems into a much smaller amount of space. An aisle or access to your files is opened up only when and where you need it by easily shifting entire rows of high-density shelving.



  • Speed access to and retrieval of information

By allowing you to store all your information in one space-efficient area, files and other media are accessible within a few feet of each other. Mobile shelving systems allow you to keep files close to those that need them and minimize off-site storage. Productivity increases as the amount of time required for access, filing and retrieval of your information is reduced.



  • Storage of your valuable collections

The storage of historical documents requires specific conditions for safe and long-term preservation. Ventilation ducts and filters ensure an optimum climate to protect the archive against dust and mould. In addition to climate control, Simply mobile shelving has a range of features to preserve a historical archive collection.



  • Effortless movement

Simply custom builds a carriage that wraps around your existing shelving to match your environment. The carriages are mounted to rails and move easily



  • safety

The built-in safety locks for mechanical type cabinets to safeguard users from accidentally trapped in aisles.







Specification:





Parameter Specification :
Types: Manual Mechanical Wheel Mechanical Handle
Material : Electyolytic Galvanized Steel
Surface treatment: Epoxy Powder Coating
Dimension : Height : 2150mm
Width : (905*N)+165mm (N=number of Bays)
Depth : Fixed Unit : 450mm
Movable Unit : 450/650/850mm
Shelf Size : W845xD395xH38mm(for 450/850); W845xD295xH38mm(for 650);
No. of Shelf Single Fixed /Single Movable =4n
Double Movable =8n
Aisle Size : 600-1000mm
Loading per Shelf: Reinforced Shelf : D295mm/85kg ; D395mm/100kg
Multi-purpose Shelf : D395mm/70kg
No. of Rails : 1-3Bays : 2pcs 4-5Bays : 3pcs
6-7Bays : 4pcs 8Bays : 5pcs
Thickness: Base Back panel Top panel Front panel Side panel Shelf Post Rail
2mm 1mm 1mm 1mm 1mm 0.8mm 1.5mm 2mm
Lock : Steering wheel with brake ,more safety
Post 50x50mm square tube post of double plate with slots in 25mm increment
Bumper : Natural rubber of 30x16mm
Rail : Made of 25mm concrete steel with 0.8mm stainless steel sheet coating
Wheel : Iron die casting with anti-rust zinc coating
Loading : 1000kg / Wheel
Standard model of mobile filing shelving
Type Bay numbers Single fixed Single movable Double movable Double Movable
Manual 1 SFP450-1 SMP450-1 DMP650-1 DMP850-1
2 SFP450-2 SMP450-2 DMP650-2 DMP850-2
Mechanical 1 SFM450-1 SMM450-1 DMM650-1 DMM850-1
2 SFM450-2 SMM450-2 DMM650-2 DMM850-2
3 SFM450-3 SMM450-3 DMM650-3 DMM850-3
4 SFM450-4 SMM450-4 DMM650-4 DMM850-4
5 SFM450-5 SMM450-5 DMM650-5 DMM850-5
6 SFM450-6 SMM450-6 DMM650-6 DMM850-6
7 SFM450-7 SMM450-7 DMM650-7 DMM850-7
8 SFM450-8 SMM450-8 DMM650-8 DMM850-8
Standard Depth: ( D ) 450mm 450mm 650mm 850mm
Standard Hight: ( H ) 2150mm
Standard Width: ( W ) 905*N (N=number of Bays)
Thanks for your concern !







 Why choose simply?




1. All filing shelving can be customized/tailored, sizes/dimensions & the designing, we can do as per you requested
2. Industry Solid bearings & tracks are what we are using
3. A variety of accessories for your choice
4. more than 10 years manufacturing experience
we have been manufacturing compact filing system more than 10 years, our professional teams will offer you suitable & perfect solutions, we are not offering products, we are offering storage solution
