4 Bay Mechanical Bulk Filer High Density Storage System With Epoxy Powder Coating Surface

Basic Information
Place of Origin: CHINA
Brand Name: Simply
Certification: SGS
Model Number: SII-MBS007
Minimum Order Quantity: 1 set
Packaging Details: brown carton
Delivery Time: 25days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detail Information
Material: Steel Or Stainless Steel Size: Custom Sizes To Max Use The Space
Surface: Epoxy Powder Coating Warranty: 5 Years
Accessories: Ledge, Divider, Donut Bumper Features: Easy To Relocated
High Light:

high density wire shelving

,

high density shelving system


Product Description

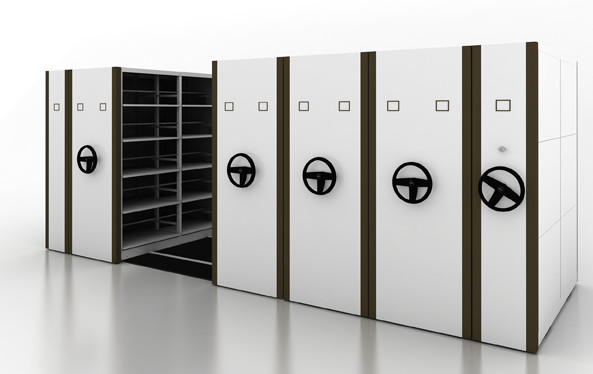

4 Bay Mechanical Bulk Filer For Archives & Legal Size Hanging Folder Files



Features of the Mechanical Bulk Filer



  1. The Mechanical Assist carriages can be designed to take shelving, racking, cabinets
  2. All size length, depth & heights can be customized
  3. Welded-steel carriage sections enhance the shelving alignment and reduce binding, racking and misalignment of carriage and shelving.
  4. All the rails made of 20*20mm solid steel & can be extended
  5. Maximum load carrying capacity of 1,500 kg per linear meter
  6. Bumpers mounted to protect material which may extend beyond the shelf face and provide positive stops without damage
  7. Each row have a label holder for identification
  8. OEM & ODM acceptable

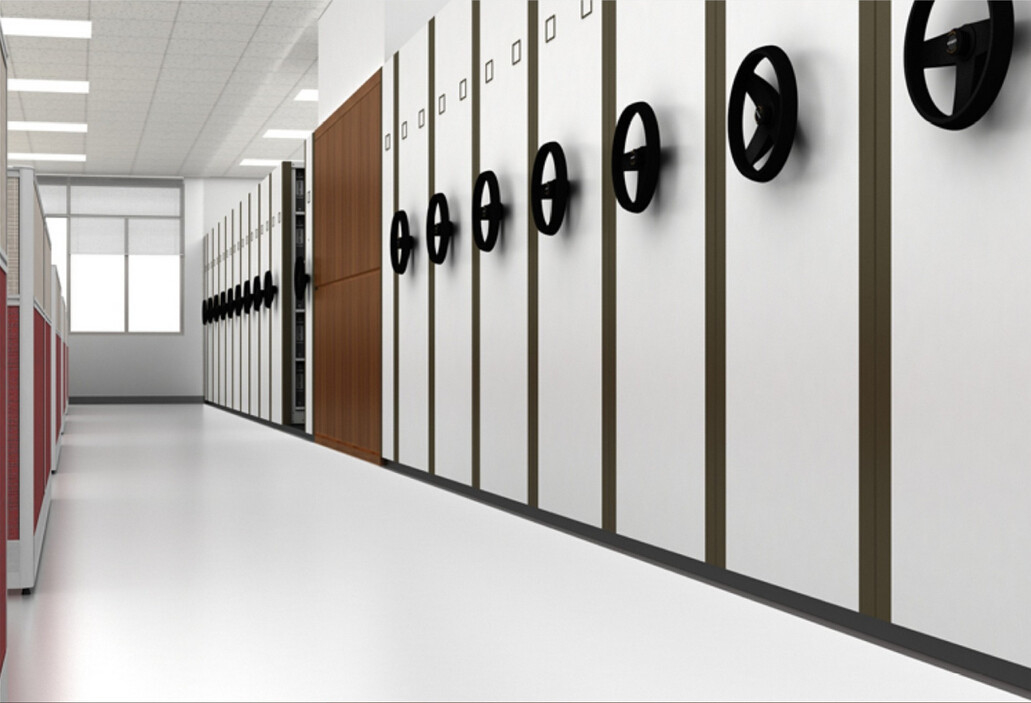

The benefits you can get by using mobile aisle shelving systems



  • Double your storage capacity

Mobile shelving offers the highest possible density for storing files and other media. Simply mobile shelving systems maximize existing storage space by eliminating aisles and compacting several storage cabinets or shelving systems into a much smaller amount of space. An aisle or access to your files is opened up only when and where you need it by easily shifting entire rows of high-density shelving.



  • Speed access to and retrieval of information

By allowing you to store all your information in one space-efficient area, files and other media are accessible within a few feet of each other. Mobile shelving systems allow you to keep files close to those that need them and minimize off-site storage. Productivity increases as the amount of time required for access, filing and retrieval of your information is reduced.



  • Storage of your valuable collections

The storage of historical documents requires specific conditions for safe and long-term preservation. Ventilation ducts and filters ensure an optimum climate to protect the archive against dust and mould. In addition to climate control, Simply mobile shelving has a range of features to preserve a historical archive collection.



  • Effortless movement

Simply custom builds a carriage that wraps around your existing shelving to match your environment. The carriages are mounted to rails and move easily



  • safety

The built-in safety locks for mechanical type cabinets to safeguard users from accidentally trapped in aisles.







Specification:





Parameter Specification :
Types: Manual Mechanical Wheel Mechanical Handle
Material : Electyolytic Galvanized Steel
Surface treatment: Epoxy Powder Coating
Dimension : Height : 2150mm
Width : (905*N)+165mm (N=number of Bays)
Depth : Fixed Unit : 450mm
Movable Unit : 450/650/850mm
Shelf Size : W845xD395xH38mm(for 450/850); W845xD295xH38mm(for 650);
No. of Shelf Single Fixed /Single Movable =4n
Double Movable =8n
Aisle Size : 600-1000mm
Loading per Shelf: Reinforced Shelf : D295mm/85kg ; D395mm/100kg
Multi-purpose Shelf : D395mm/70kg
No. of Rails : 1-3Bays : 2pcs 4-5Bays : 3pcs
6-7Bays : 4pcs 8Bays : 5pcs
Thickness: Base Back panel Top panel Front panel Side panel Shelf Post Rail
2mm 1mm 1mm 1mm 1mm 0.8mm 1.5mm 2mm
Lock : Steering wheel with brake ,more safety
Post 50x50mm square tube post of double plate with slots in 25mm increment
Bumper : Natural rubber of 30x16mm
Rail : Made of 25mm concrete steel with 0.8mm stainless steel sheet coating
Wheel : Iron die casting with anti-rust zinc coating
Loading : 1000kg / Wheel
Standard model of mobile filing shelving
Type Bay numbers Single fixed Single movable Double movable Double Movable
Manual 1 SFP450-1 SMP450-1 DMP650-1 DMP850-1
2 SFP450-2 SMP450-2 DMP650-2 DMP850-2
Mechanical 1 SFM450-1 SMM450-1 DMM650-1 DMM850-1
2 SFM450-2 SMM450-2 DMM650-2 DMM850-2
3 SFM450-3 SMM450-3 DMM650-3 DMM850-3
4 SFM450-4 SMM450-4 DMM650-4 DMM850-4
5 SFM450-5 SMM450-5 DMM650-5 DMM850-5
6 SFM450-6 SMM450-6 DMM650-6 DMM850-6
7 SFM450-7 SMM450-7 DMM650-7 DMM850-7
8 SFM450-8 SMM450-8 DMM650-8 DMM850-8
Standard Depth: ( D ) 450mm 450mm 650mm 850mm
Standard Hight: ( H ) 2150mm
Standard Width: ( W ) 905*N (N=number of Bays)
Thanks for your concern !







 Why choose simply?




1. All filing shelving can be customized/tailored, sizes/dimensions & the designing, we can do as per you requested
2. Industry Solid bearings & tracks are what we are using
3. A variety of accessories for your choice
4. more than 10 years manufacturing experience
we have been manufacturing compact filing system more than 10 years, our professional teams will offer you suitable & perfect solutions, we are not offering products, we are offering storage solution
