Adjustable Chrome Industrial Wire Shelving With 4 Shelves Garage NSF Approval

Large Image :  Adjustable Chrome Industrial Wire Shelving With 4 Shelves Garage NSF Approval

Product Details:

Place of Origin: China
Brand Name: Simply
Certification: NSF
Model Number: SII-WSA20202

Payment & Shipping Terms:

Minimum Order Quantity: 50 sets
Packaging Details: Standard Export Carton Box
Delivery Time: 25 days
Payment Terms: L/C, T/T
Supply Ability: 10000 sets per month
Detailed Product Description
Material: Metal,Carbon Steel Usage: Extend Existing Wire Shelving Unit
Style: Adjustable Shelf Height Feature: Corrosion Protection
Capacity: Customized Functional Design: Flexible
OEM/ODM: Accept Finish: Epoxy Coated In Black
Wire Gap: 20mm/25mm Post Dia: 25X1.2mm
Assemble: No Tool Required Salty And Spray Testing: 48 Hours

Product Overview

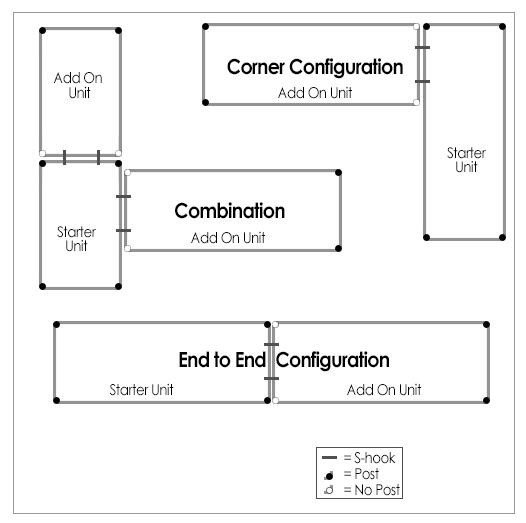

  • Expand Current wire shelving or create a new corner shelf with these add-on wire shelving.

  • Freely adding on Shelves and adjust every 1'' along posts.

  • Supports up to 800lbs(360kgs)per shelf, evenly distributed.

  • NSF approved

  • Perfect for bulk storage,closet storage,or anywhere you need to combine accessiblility with durable storage.



Specifications of Add on Wire Shelving :

1) Item Add On Adjustable Wire Shelving With 4 Shelves (30" W X 14" D X 60" H)
2) Item no.: SII-WSA20202
3) Dimensions (W x L x H): 355mm*757mm*1518mm
4) Material: carbon steel /PP
5) Wire Gap: 20mm
6) Post dia.: 25.4 x 1.2mm thickness
7) Surface finish: Chrome / Epoxy coated in black
8) Size Standard sizes or can be customized based on MOQ 20 units
9) Static Loading Weight 800lbs(360kgs)
10) Component shelf, Post, Clips,leveling feet,S-hook
11) Packing Standard Export Carton Box
12) Deliver Time Within 30 Days After Receipt of Deposit
13) OEM/ODM Available



Standard Sizes Of Wire Shelving As Below, However Custom Size Is Also Acceptable

Depth (mm) 14" / 355 18" / 457 21" / 533 24" / 609
Length (mm)
14" / 355 14" * 14" / 355*355 18" * 14" / 457*355 21" * 14" / 533*355 24" * 14" / 609*355
24" / 609 14 " * 24" / 355*609 18" * 24" / 457*609 21" * 18" / 533*609 24" * 24" / 609*609
30" / 757 14" * 30" / 355*757 18" * 30" / 457*757 21" * 30" / 533*757 24" * 30" / 609*757
36" / 907 14" * 36" / 355*907 18" * 36" / 457*907 21" * 36" / 533*907 24" * 36" / 609*907
42" / 1060 14" * 42" / 355*1060 18" * 42" / 457*1060 21" * 42" / 533*1060 24" * 42" / 609*1060
48" / 1215 14" * 48" / 355*1215 18" * 48" / 457*1215 21" * 48" / 533*1215 24" * 48" / 609*1215
54" / 1370 14" * 54" / 355*1370 18" * 54" / 457*1370 21" * 54" / 533*1370 24" * 54" / 609*1370
60" / 1518 14" * 60" / 355*1518 18" * 60" / 457*1518 21" * 60" / 533*1518 24" * 60" / 609*1518
72" / 1822 14" * 72" / 355*1822 18" * 72" / 457*1822 21" * 72" / 533*1822 24" * 72" / 609*1822



Post heights can be in any possible size
Such as 14''/33''/54''/60''/72''/74''/82'' for one piece. and can be even higher with make post into two pieces





Optional finishing of Add On Wire shelving system



Surface Finish & Materials
Surface Finish Chrome Epoxy zinc+Epoxy #201s/s #304s/s
Finish Drawing
Finish Photo
Use Environment Dry Area Both Dry and Wet Area
Color Chrome White,Semi-glossed Black,Matte Black,Carbon Grey,Dark Green,Dark Blue,Silver,Highlight Silver,Warm Gray2C,Coffee Brown Electrolysis Staninless Steel
Antl-rust Capability ** *** **** **** *****
Appearance ***** ***** *** **** ****
Recommendation Comments the most popular surface finish acceptable by consumers widely used in both home and commercial storage (except cold room storage and wet area use)

the cheapest and

most durable

cost-effective

surface finish,

ideal for

non-changeable

shelf

consumer use,

widely

use in the warehouse,office,

stores,

sundries room and garage etc

the most cost-effective

anti-rust surface

finish and the best value product for coldroom storage

and special environment use.

lts cost is only1/3

of stainless steel shelves,good products for the usage of colodroom,

restraurant and stores.etc.

None of surface treatment,but better anti-rust capability than the steel wire shelves with zinc plated covered by epoxy coated finish,used in the coldroom,food storage and healthcare storage etc.which has strict health security requests industry. 100% no rust,best products for the usage of coldroom food storage and healthcare storage etc.which has strict health security requests industry





Why choose Simply?
SGS Audited factory for continuous 7 years.
Low MOQ of trial order is acceptable allow you check the quality and reliability
QA inspection during and before shipping minimum the defective and clients’ complain
Advanced machine to ensure shelvings are cut, welded & polished properly and Rounded edges/profiles ensures the ergonomics and detail care. For daily use in the storage room.
More than 10 years manufacturing experience
