Place of Origin: | China |
---|---|
Brand Name: | SIMPLY |
Certification: | SGS |
Model Number: | SII-MD006 |
Minimum Order Quantity: | 50 sets |
Price: | Negotiable |
Packaging Details: | Export standard carton, wooden or steel pallet is available. |
Delivery Time: | 30 working days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 5000 ton per year |
Type: | Storage Racks | Material: | Q235 Steel |
---|---|---|---|
Color: | Blue, Orange, Grey, White, As Per Request | Surface Treatment: | Powder Coating |
Components: | Upright, Beam And Laminate/shelf | Use: | Warehouse Rack,Industrial,Tool Rack,Widly Used |
Weight Capacity: | 150-500kgs | Packing: | Carton,Film Wrapping |
High Light: | Electrostatic Spraying Metal Storage Rack,Metal Storage Rack SGS,q235 steel 6 tier metal shelf |

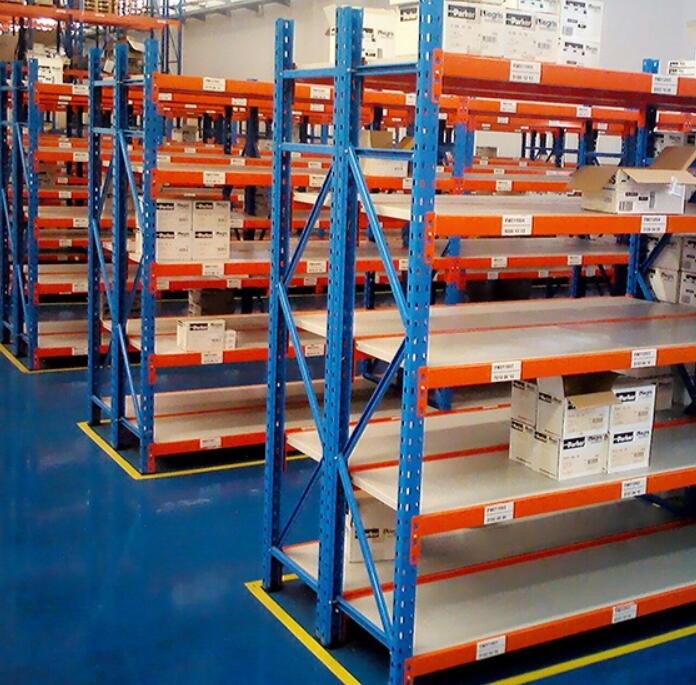

Blue Coated Six Layers Metal Storage Rack
Components: welded upright frame, beam and laminates/shelf.
The Medium Duty Racks are generally used for direct storage of scattered small-sized packages. The shelves are composed of columns, beams and laminates.It adopts combined design, light and sturdy structure, convenient and quick to install and disassemble.The steel laminate can be adjusted up to 50mm up and down to meet a variety of storage needs.And the layer has a large bearing capacity, teardrop hole design, free lifting and easy installation.
Application:
1. Low weight products.
2. For materials that require more protection.
3. Open shelving applications.
4. Ideal for material resistant to deterioration.
5. Lots of different combinations.
6. Possibility to expand the system.
7. Ideal to store boxes, big packages and long pieces.
Starter bays and extensions bays(also called starter bays, add-on bays/main units, add on units)
To save your money and warehouse space, afer counting the number of racks you require, better figure out the qty of both starter bays and extension bays.
Dimention Options WxDxH mm | Layer | loading weight per layer |
1200*400*2000 | 4,5,6,7 | 100kg |
1500*400*2000 | 4,5,6,7 | 100kg |
2000*400*2000 | 4,5,6,7 | 100kg |
1200*450*2000 | 4,5,6,7 | 100kg |
1500*450*2000 | 4,5,6,7 | 120kg |
2000*450*2000 | 4,5,6,7 | 120kg |
1200*500*2000 | 4,5,6,7 | 100kg |
1500*500*2000 | 4,5,6,7 | 100kg |
2000*500*2000 | 4,5,6,7 | 100kg |
1500*500*2000 | 4,5,6,7 | 230kg |
2000*500*2000 | 4,5,6,7 | 230kg |
1200*600*2000 | 4,5,6,7 | 200kg |
1500*600*2000 | 4,5,6,7 | 220kg |
2000*600*2000 | 4,5,6,7 | 200kg |
2000*600*2000 | 4,5,6,7 | 300kg |
1500*600*2000 | 4,5,6,7 | 300kg |
Specification
Each shelf with 2-3 reinforcing, which is based on the loading capacity. (surface treatment: powder coated or galvanized)
Upright
Advantages
1. It adopts modular structure design, which is easy to assemble and disassemble and flexible in application.
The height of the column is provided with a pitch of 50mm per hole. The use of the layer can be adjusted according to the height of the cargo.
2. After processing all the components of the shelf, all the products are processed by grinding, pickling, automatic powder electrostatic spraying and drying. The finished products have a smooth surface, strong rust resistance, and beautiful appearance.
3. The medium-sized duty rack adopts a structural form in which a beam and a laminate are combined.
4. The layer has large bearing capacity, teardrop hole design, free lifting and easy installation.
5. Reasonable structure, sturdy and durable, the surface is treated by electrostatic spraying, environmentally friendly. It's suitable for manual access to light parts, widely used in electronics, food and medicine, clothing and office, business and other industries.
