| Place of Origin: | China |
|---|---|
| Brand Name: | SIMPLY |
| Certification: | SGS |
| Model Number: | SII-DR302 |
| Minimum Order Quantity: | 30 sets |
| Price: | Negotiable |
| Packaging Details: | Export standard carton, wooden or steel pallet is available. |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000 ton per year |
| Type: | High Density Shelving | Material: | Q235 Steel |
|---|---|---|---|
| Color: | Blue, Orange, Grey, White, As Per Request | Surface Treatment: | Powder Coating |
| Mobility: | Fixed Or As Requirement | Components: | Upright, Beam And Laminate/shelf |
| Layers: | 3, 4, 5, 6 | OEM: | Yes |
| Usage: | Tool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack | Weight Capacity: | 100-300 KG |
| High Light: | light duty metal shelving,light duty warehouse shelving |
||

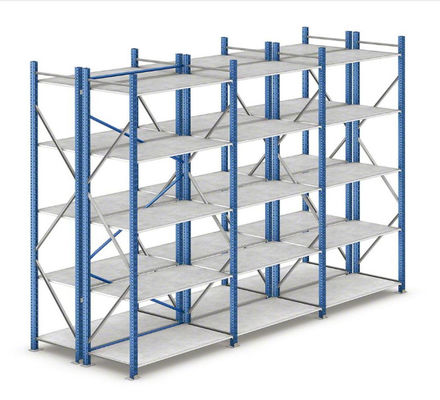

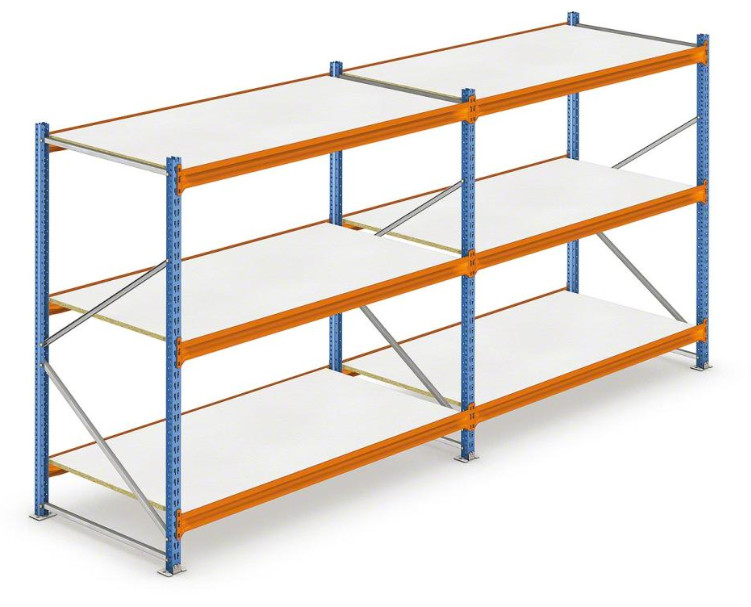

300kg Loading Steel Light Duty Shelving, Wholesale Leather Industry Long Span Shelving
Wide Span Shelving mainly consist of step beam, frames, steel panel, and footplate. Situable for manual operation. And it can be designed the proper size according to the material storage requirement. Mainly for big bearing capacity goods with long crossbeam.
This longspan shelving is designed for warehouses where goods are deposited and removed manually from shelves. This system also makes optimal use of warehouse height, as the higher levels can be accessed mechanically by devices that lift the operator to required height (stacker cranes or order picking forklift trucks) or via gangways located between shelves.
Specification
| 1) Item | 300kg Loading Steel Light Duty Shelving, Wholesale Leather Industry Long Span Shelving |
| 2) Item No.: | SII-DR302 |
| 3) Type: | Metal Storage Shelving |
| 4) Material: | Steel Q235 |
| 5) Surface Finish: | Powder Coating |
| 6) Size: | L2000*D600*H2000 or Custom As Requirement |
| 7) Component: | Columns, Beams and Laminates |
| 8) Supply Ability: | 300-400 ton per month |
Application
Standard Size
| Dimention Options(LxWxH) | Loading/layer |
| 1200*400*2000 | 100kg |
| 1500*400*2000 | 100kg |
| 2000*400*2000 | 100kg |
| 1200*450*2000 | 100kg |
| 1500*450*2000 | 120kg |
| 2000*450*2000 | 120kg |
| 1200*500*2000 | 100kg |
| 1500*500*2000 | 100kg |
| 2000*500*2000 | 100kg |
| 1500*500*2000 | 230kg |
| 2000*500*2000 | 230kg |
| 1200*600*2000 | 200kg |
| 1500*600*2000 | 220kg |
| 2000*600*2000 | 200kg |
| 2000*600*2000 | 300kg |
| 1500*600*2000 | 300kg |
Commonly Used Advice: 2000*600*2000, 2000*500*2000, 1500*500*2000
Why Choose wide span shelving?
1. Simple structure.
2. Easy assembly.
3. Fast shipment.
4. Size and color of steel rack can be customized according to your requirement.
5. Powder coated surface,water proof and corrosion resistance.
6. Steel light duty rack can be located, accessed and moved individually.
Grey Color
