Style: | Cantilever Rack | Material: | Q235 |
---|---|---|---|
Color: | Blue Upright, Orange Arm | Structure: | Easy Assemble |
Components: | Vertical Column, Base Support, Arms | Weight Capacity: | 500-3000kg Per Arm |
Usage: | Warehouse Storage System | Height: | 2000-6500 Mm |
Width: | 900-3500 Mm | Depth: | 1800 Mm |
Highlight: | industrial steel storage racks,storage shelving units |

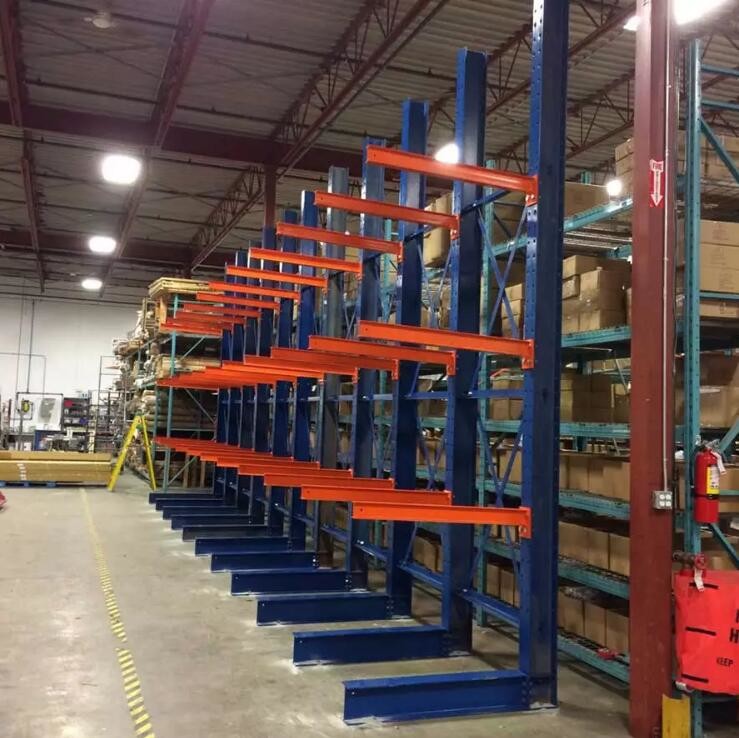

Increasing Storage Space Cantilever Pipe Storage Racks Double Faced / Single Faced
It's designed to store long, awkward, or bulky materials of virtually any length. Unlike any other rack systems cantilever racks offer no vertical obstructions in the storage area. There are two structures-single arm and double arms. It fit for small space and low warehouse.
Preparation from Client
1. the size of whole racking system: length x width x height
2. the distance between with base support
3. loading capacity per arm
4. arm's length
5. how many layers
6. single faced or double faced
What We Provide
1. Professional CAD Drawings
2. Custom designed and built to meet your specific needs and requirements
3. Custom sizes and colours are available
Specifications of Cantilever Racks
Regular Size |
Single Faced | Double Faced |
W1200×D600×H2500mm | W1200×D1200×H2500mm | |
W1200×D1000×H3000mm | W1200×D2000×H3000mm | |
W1200×D1200×H3600mm | W1200×D2400×H3600mm | |
W1200×D1500×H4800mm | W1200×D3000×H4800mm | |
Cantilever Rack Levels | 2 levels, 3 levels, 4 levels, 5 levels | |
Arm Length | 600mm, 1000mm, 1200mm, 1500mm | |
Arm Load Capacity | 300KG, 500KG, 700KG per arm | |
Material Thickness | 1.5mm, 1.8mm, 2.0mm, 2.5mm |
